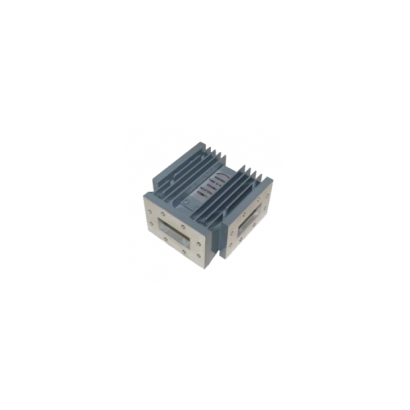

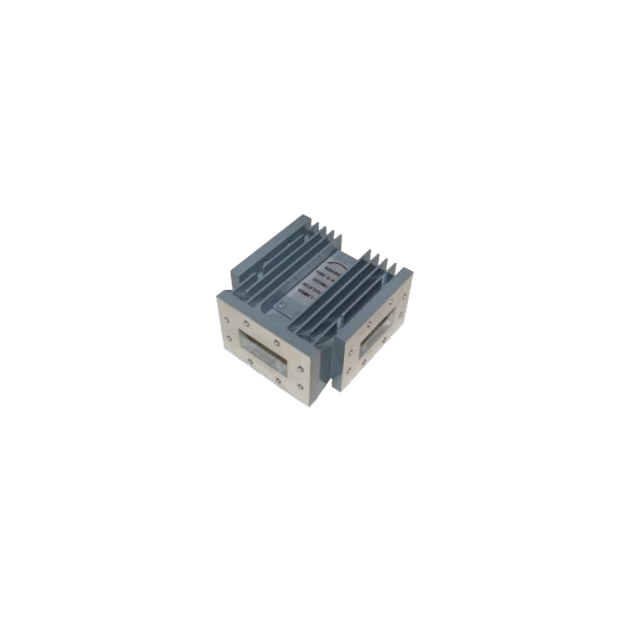

WR430 Waveguide Circulator 1.7GHz–2.6GHz

WR430 Waveguide Circulator 1.7GHz–2.6GHz

RFWC430C
/
DETAIL
Product Description
RFWC430C is a waveguide circulator with a frequency range of 1.7 to 2.6GHz.
The circulator has a typical isolation of 19dB.
The maximum insertion loss is 0.3dB.
The circulator’s waveguide type is WR430.
Features
• High power handling up to 3KW CW
• Wide band operation
• High isolation within operational band
• Low Insertion Loss
Typical Applications
• Wireless Infrastructure
• Military and Aerospace Applications
• Test Instrumentation
• Radar Systems
• 5G Wireless Communications
• Microwave Radio Systems
• TR Modules
• Research and Development
• Cellular Base Stations
