Ultra Low Noise Amplifier 50MHz-500MHz

Ultra Low Noise Amplifier 50MHz-500MHz

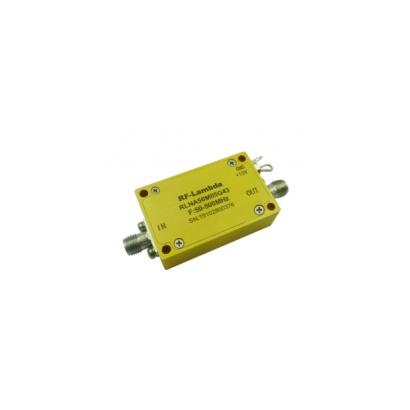

RLNA50M05G43
Ultra Low Noise Amplifier.png
/
DETAIL
RLNA50M05G43 is an ultra low noise amplifier with a frequency range of 50
to 500MHz.
The power output of this amplifier is 20dBm typical. The typical gain is 50dB
with a flatness of ±2.5dB.
The working temperature of this product is between - 40℃ and + 85℃.
Features
• Low Noise Amplifier
• Gain 50dB Typical
• Output Saturation Power 22dBm Typical
• Supply Voltage +15VDC
• 50 Ohm Matched Input/Output
• Low Noise Figure +0.5dB Typical
• Gain Flatness +/-2.5dB
Typical Applications
• Wireless Infrastructure
• Military and Aerospace Applications
• Test Instrumentation
• Radar Systems
• 5G Wireless Communications
• Microwave Radio Systems
• TR Modules
• Research and Development
• Cellular Base Stations
