Ultra Low Phase Noise USB Controlled RF Synthesizer 0.039GHz - 22GHz
Ultra Low Phase Noise USB Controlled RF Synthesizer 0.039GHz - 22GHz

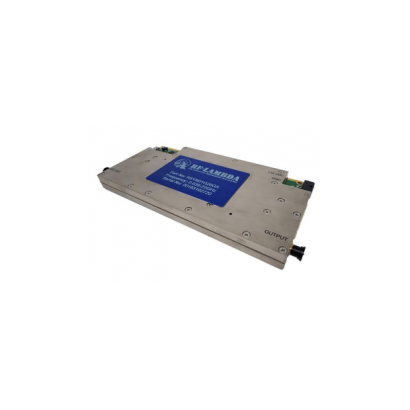

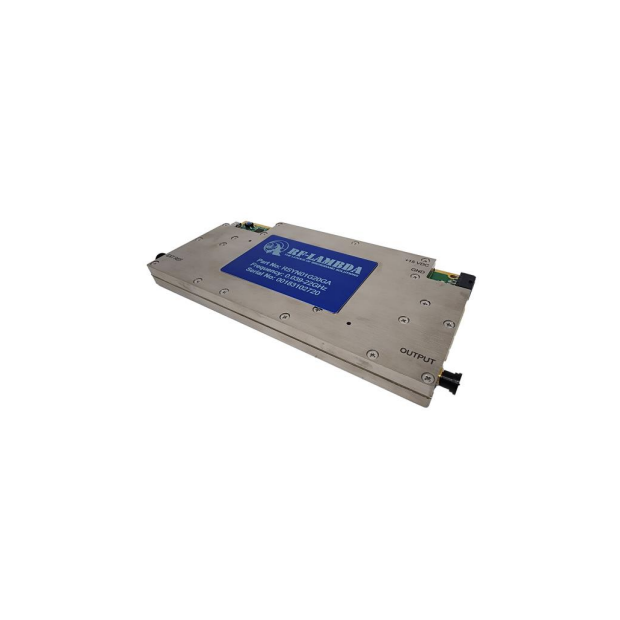

RSYN01G20GA
DETAIL
RSYN01G20GA is an ultra low phase noise USB controlled RF synthesizer with a frequency range of 0.039 to 22GHz.
The typical power output of this RF synthesizer is +10dBm. The frequency stability is ± 0.5ppm using the onboard reference.
The RSYN01G20GA is an easy-to-use high frequency signal generator controlled through a standard USB port. Using advanced VCO and DDS based technology along with a temperature compensated crystal reference, it offers ultra-low phase noise and high frequency resolution.
Features
• DDS Driven RF Synthesizer
• TCXO Reference
•External Reference 10MHz.
• Low Phase Noise.
• DLL programming supported.
• USB2.0 Interface
Typical Applications
• Wireless Infrastructure
• Military and Aerospace Applications
• Test Instrumentation
• Radar Systems
• 5G Wireless Communications
• Microwave Radio Systems
• TR Modules
• Research and Development
• Cellular Base Stations
