BLOCK DOWN CONVERTER IF Output 25MHz~100MHz RF Input 400MHz~600Mhz

BLOCK DOWN CONVERTER IF Output 25MHz~100MHz RF Input 400MHz~600Mhz

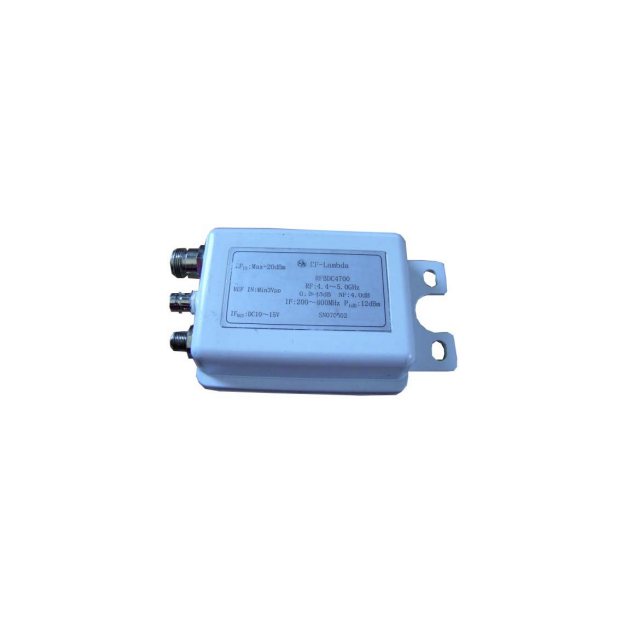

RFBDC4M6MA
/
DETAIL
Summary
RFBDC4M6MA down-converter unit uses the phase lock technology, and it uses the crystal oscillator with temperature compensating function as the referenced signal of PLL, what’s more, it uses the low phase noise Analog Device ADF4107BRS as the frequency synthesizer chip of PLL. So the frequency of its inner part LO has a good stability in a wider temperature range.
RFBDC4M6MA Down-converter use two band pass filter inside so that It can give better out band rejection.

General Specification
IF Output frequency: 25MHz~100MHz
RF Input frequency: 400MHz~600Mhz
External reference 10MHz interface available.
Frequency stability 2x10E –6 / Hour
Frequency hoping <10mS / 5MHz
High linearity low spurious in / out band
Handle high peak to average ratio signal such as OFDM, QPSK, DSSS signal.
Ideal for point to point radio station.
Small package high mobility.
