RF Block Up Converter
HIGH PEAK TO AVERAGE RATIO OFDM BLOCK UPCONVERTER IF Input 25MHz~800HMz RF O tp t 19 85GH 20 20GH
HIGH PEAK TO AVERAGE RATIO OFDM BLOCK UPCONVERTER IF Input 25MHz~800HMz RF O tp t 19 85GH 20 20GH

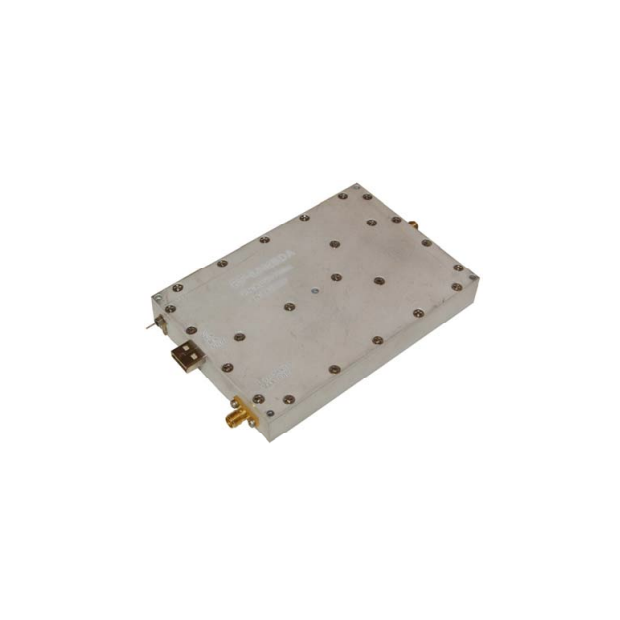

RFBUC19G20GC
DETAIL
RFBUC19G20GC up-converter unit uses the phase lock technology, and it uses the crystal oscillator with temperature compensating function as the referenced signal of PLL, what’s more, it uses the low phase noise national semiconductor LMX2434TMX as the frequency synthesizer chip of PLL. So the frequency of its inner part LO has a good stability in a wider temperature range.
RFBUC19G20GC up-converter unit can ensure that the much lower IF (intermediate frequency) input is valid when the output range of RF (radio frequency) is quite broad, since it adopts the double frequency conversion scheme .
General Specification
IF input frequency: 25MHz~800MHz
RF output frequency: 19.85GHz~20.20GHz
Output power up to 1W CW.
Frequency stability 2x 10E –6 / Hour
Frequency hoping <10mS / 5MHz
Control interface: USB USART (TTL control)
High linearity low spurious in / out band
Handle high peak to average ratio signal such as OFDM,
QPSK, DSSS signal.
Ideal for point to point radio station.
Small package, high mobility.
