Coaxial 30W 0º 4-Way Power Divider 0.5GHz-2GHz

Coaxial 30W 0º 4-Way Power Divider 0.5GHz-2GHz

RFLT4W0502G
/
DETAIL
Product Description

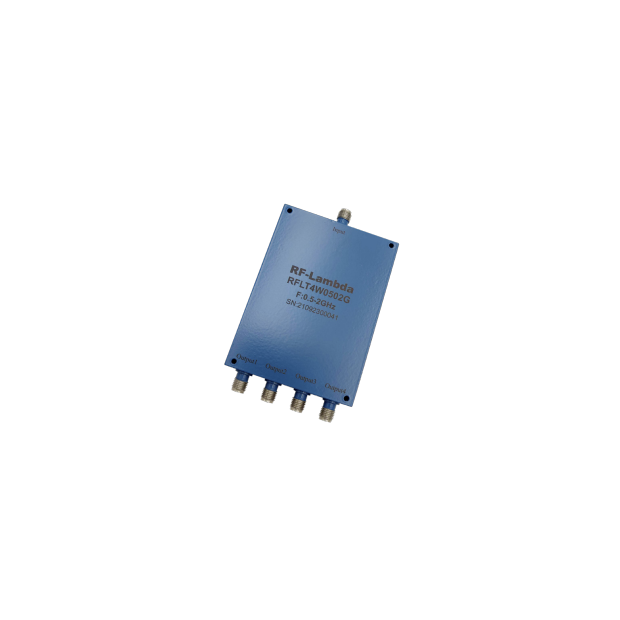

RFLT4W0502G is 4-Way power divider with a frequency range of 0.5 to 2GHz.
The Forward Power of this power divider is 30W.
The Insertion Loss is 0.6dB with a typical isolation of 22dB.
The working temperature of this product is between - 40℃ and + 85℃.

Features
• High power handling up to 30W
• Wide band operation
• High isolation within operational band
• Low Insertion Loss

Typical Applications
• Wireless Infrastructure
• Military and Aerospace Applications
• Test Instrumentation
• Radar Systems
• 5G Wireless Communications
• Microwave Radio Systems
• TR Modules • Research and Development
• Cellular Base Stations
