Coaxial Cavity Notch Filter 9.55GHz-9.75GHz
Coaxial Cavity Notch Filter 9.55GHz-9.75GHz
RNFL9650K
DETAIL

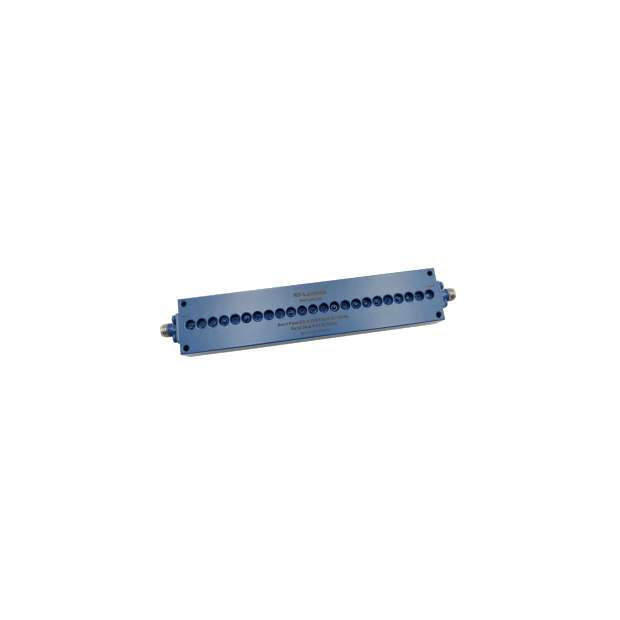

RNFL9650K is a coaxial cavity notch filter with a frequency range of 9.55 to 9.75GHz.
The peak power of this notch filter is 50W. The insertion loss is 2.0 dB with a typical rejection of 60dB.
The working temperature of this product is between - 40℃ and + 85℃.
Features
• High Rejection
• Low Insertion Loss
• Excellent Temperature Stability
• Compact Size
Typical Applications
• Wireless Infrastructure
• Military and Aerospace Applications
• Test Instrumentation
• Radar Systems
• 5G Wireless Communications
• Microwave Radio Systems
• TR Modules
• Research and Development
• Cellular Base Stations
