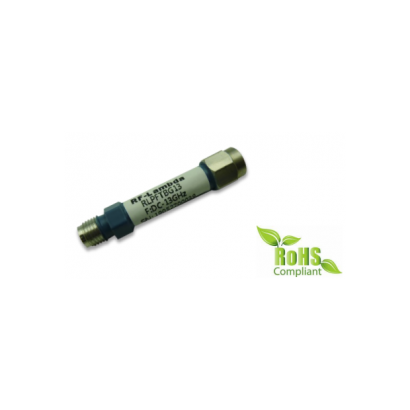

Tube LOW Pass Filter DC -13GHz
Tube LOW Pass Filter DC -13GHz

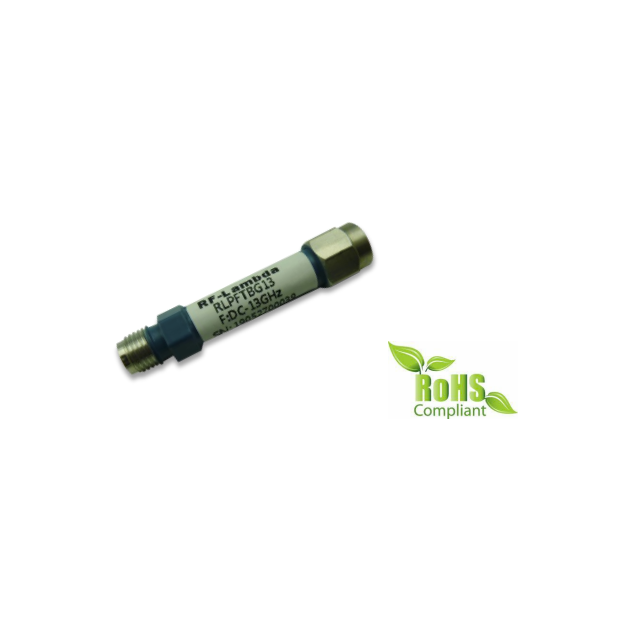

RLPFTBG13
DETAIL
• SSS Filter ‐ Suspended Substrate Stripline Filter
• Flat frequency response and low insertion loss.
• Covers the 1 GHz to 18 GHz Frequency Range
• 3dB BW Available from 5‐50% (ƒ0)
• Designs that Cover up to 40 GHz Also Available
• MIL‐E‐5400 standard
Typical Applications
• Wireless Infrastructure
• Military & Aerospace
• Test & Measurement
