Waveguide Switch

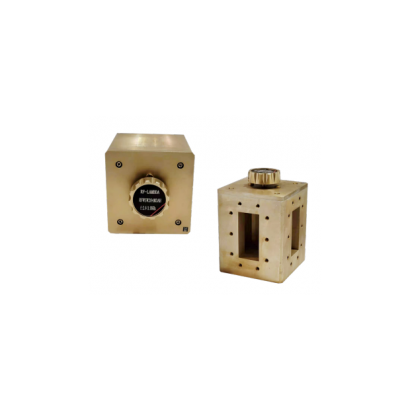

Waveguide WR284 3-Port H-Plane Switch 2.6GHz-3.95GHz
Waveguide WR284 3-Port H-Plane Switch 2.6GHz-3.95GHz

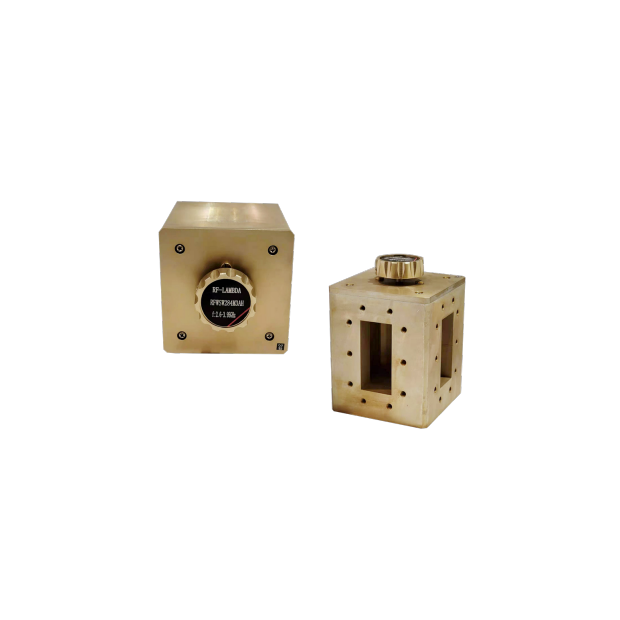

RFWSW284M3AH
DETAIL
The RFWSW284M3AH is a 3 port waveguide switch with a frequency range of 2.6 to 3.95GHz.
The power handling of this switch is 1500W max. The typical insertion loss is 0.2dB and the isolation is 40dB .
The switch’s interface is WR284.
The operating temperature of this product is from -40 to +85⁰C.
Features
• Waveguide Switch
• Insertion Loss +0.2dB
• Isolation 40dB
Typical Applications
• Wireless Infrastructure
• Military and Aerospace Applications
• Test Instrumentation
• Radar Systems
• 5G Wireless Communications
• Microwave Radio Systems
• TR Modules
• Research and Development
• Cellular Base Stations
Electrical Specifications (TA=+25⁰C)
