Absorptive SP6T Electro-Mechanical Switch DC -18GHz
Absorptive SP6T Electro-Mechanical Switch DC -18GHz

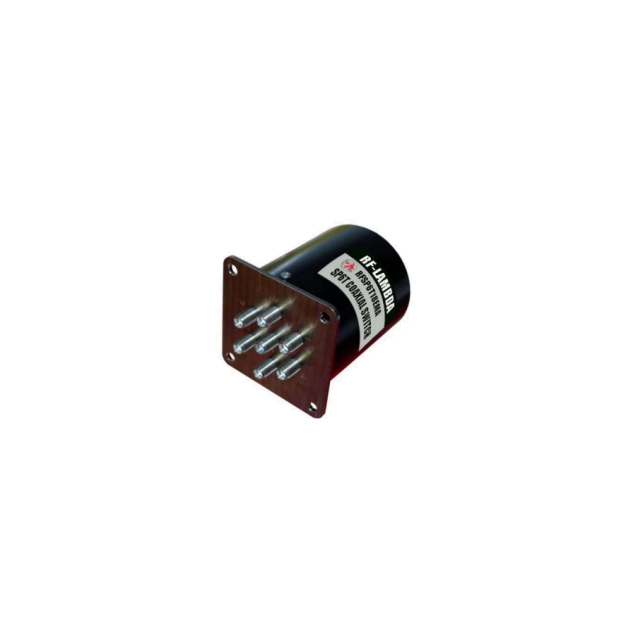

RFSP6T18EMA-S
DETAIL
• SP6T configuration
• Magnetic latching
• Operating life of 1 million cycles
• Guaranteed repeatability of 0.05dB up to 1 million cycles
• Excellent isolation, typically >80 dB to 18GHz
• Terminated ports
• TTL/5V CMOS compatible (optional)
Description
RF-Lambda’s multiport switch offers low insertion loss and high isolation, which is necessary for high performance test systems. The repeatability and reliability of this switch is vital to ATS measurement accuracy and can cut the cost of ownership by reducing calibration cycles.
Our electro-mechanical switches are made through RF-Lambda’s rigorous design and tight manufacturing specifications.
