Bi-Directional Power Amplifier 825MHz-880MHz
Bi-Directional Power Amplifier 825MHz-880MHz

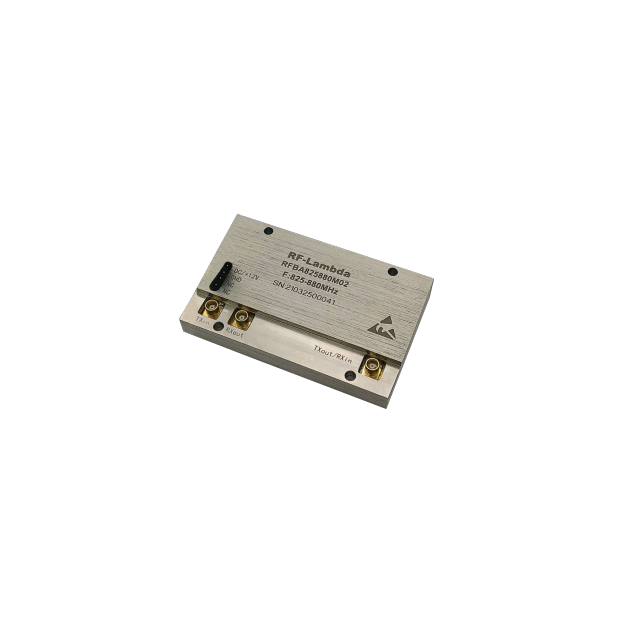

RFBA825880M02
DETAIL
The RFBA825880M02 is a bi-directional power amplifier with a frequency range of 825 to 880MHz.
The power output of this amplifier is 35dBm typical.
The typical small signal gain is 16dB with a gain flatness of ±1dB.
This power amplifier works with a +12 VDC power supply.
The power amplifier’s input/ output connectors are MCX-KE.
The operating temperature of this product is -10 to +55⁰C.
Features
• Receiver Gain: 16dB typical
• Receiver NF: <2.5dB
• Transmitter Gain : 34dB typical
• Transmitter P1dB : 35dBm
• ACPR : ≤-32dBc (@±5MHz Bandwidth)
Typical Applications
• Wireless Infrastructure
• Military and Aerospace Applications
• Test Instrumentation
• Radar Systems
• 5G Wireless Communications
• Microwave Radio Systems
• TR Modules
• Research and Development
• Cellular Base Stations
