Ultra Wide Band Low Phase Noise Amplifier 1GHz-20GHz
Ultra Wide Band Low Phase Noise Amplifier 1GHz-20GHz

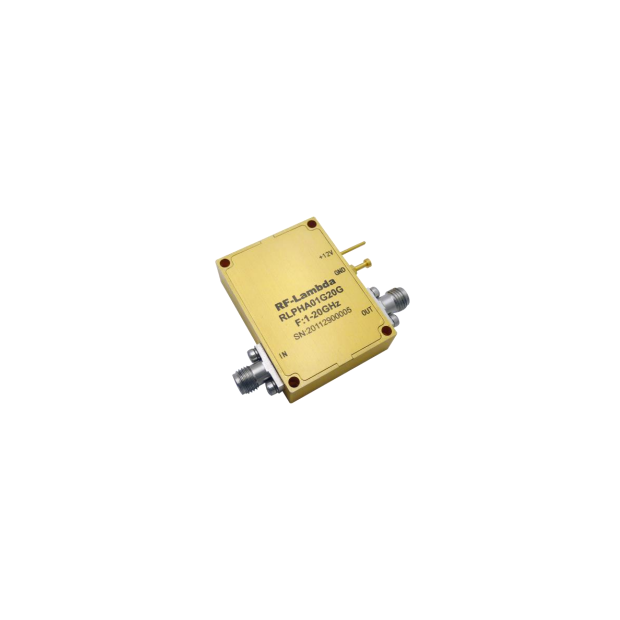

RLPHA01G20G
DETAIL
LPHA01G20G is an ultra wide band low phase noise amplifier with a frequency range of 1 to 20GHz.
The power output of this amplifier is 14dBm typical. The typical gain is 35dB with a flatness of ±1.5dB. This power amplifier works with a +12 VDC power supply.
The working temperature of this product is between - 40℃ and + 85℃.
Features
• Ultra Wide Band Low Phase Noise Amplifier
• Gain 35dB Typical
• Output Saturation Power 15dBm Typical
• Supply Voltage +12VDC
• 50 Ohm Matched Input/Output
• Low Noise Figure +5dB Typical
• Gain Flatness +/-1.5dB
Typical Applications
• Wireless Infrastructure
• Military and Aerospace Applications
• Test Instrumentation
• Radar Systems
• 5G Wireless Communications
• Microwave Radio Systems
• TR Modules
• Research and Development
• Cellular Base Stations
