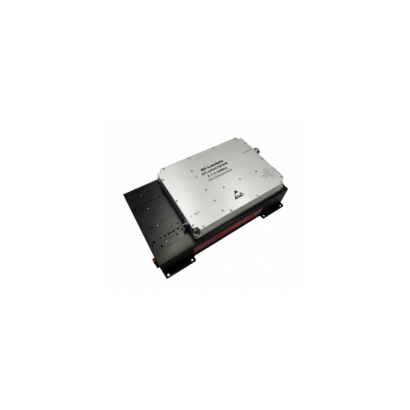

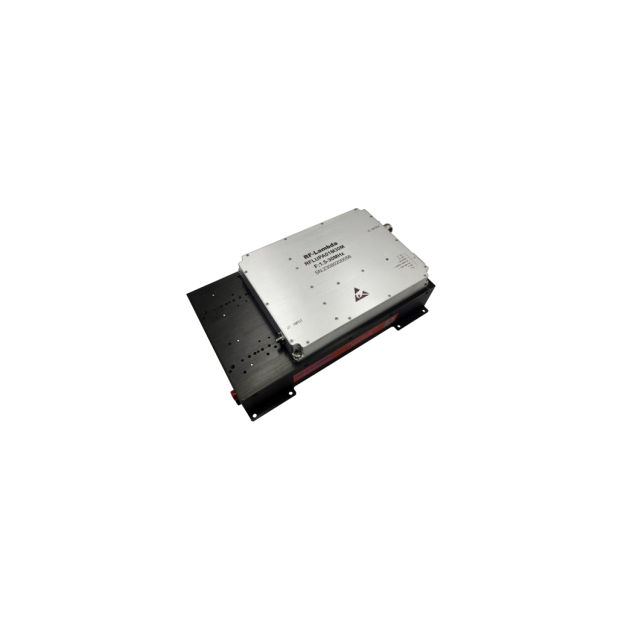

200W Broadband High Power Amplifier 1.5MHz-30MHz
200W Broadband High Power Amplifier 1.5MHz-30MHz
RFLUPA01M30M
DETAIL
FLUPA01M30M is a broadband high power amplifier with a frequency range of 1.5 to 30MHz.
he power output of this amplifier is 200Watt typical. The typical gain is 53dB. This power amplifier works with a +28VDC power supply.
The working temperature of this product is between - 20℃ and +60℃.
Features
• Broadband High Power Amplifier
• Power Gain 53dB Typical
• RF Output Power 200W Typical
• Supply Voltage +28VDC
• 50 Ohm Matched Input / Output
Typical Applications
• Wireless Infrastructure
• Military and Aerospace Applications
• Test Instrumentation
• Radar Systems
• 5G Wireless Communications
• Microwave Radio Systems
• TR Modules
• Research and Development
• Cellular Base Stations
